Table E GraphTek 5130 Flange Gaskets

PART NUMBER: GTE15
  • Sale
  • Regular price $4.80

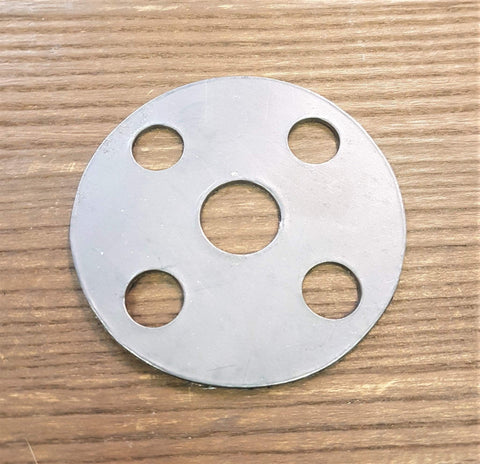

Table E GraphTek 5130 1.5mm Flange Gaskets

Our GraphTek 5130 Flange Gaskets are a compressed proprietary fibre sheet, combining a high percentage of graphite, reinforced with aramid fibres and a NBR binder. An excellent gasket for high temperature and pressure. It is produced under high load which ensures the material has very low gas leakage. Made to fit AS 2129 Pipe, Tube, Blind and Threaded Table E Flanges.

GraphTek 5130 is a reliable high performance gasket sheet with excellent mechanical properties. Suitable for many applications including High Pressure Steam, Oils, Hydrocarbons and Refrigerants, Solvents, Gases including Oxygen. Widely used in petroleum, chemical, light industry, instrumentation and automobile industry sealing devices, thermoelectric and machinery.

 Table E  GraphTek 5130 1.5mm Flange Gasket Physical Properties
